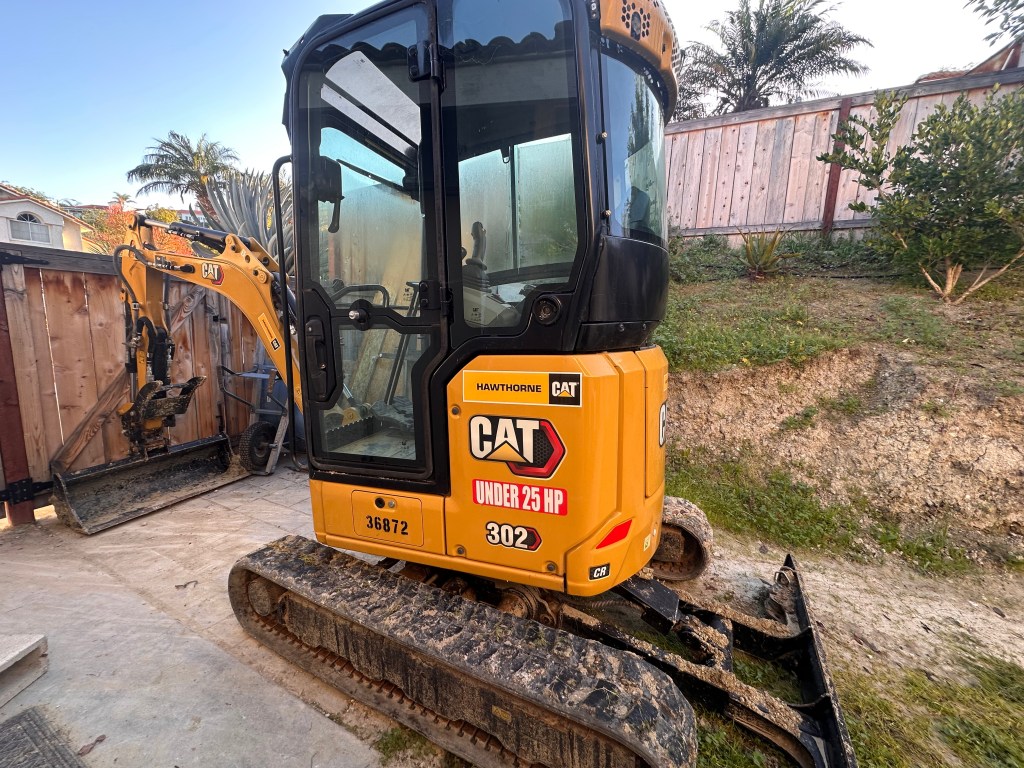

The Caterpillar 302 CR is a 2-ton class mini hydraulic excavator known for its compact design, powerful performance, and ease of operation with features like the unique Stick Steer travel mode and a spacious, sealed cab option.
Key Features & Benefits
- Compact Radius Design: The compact radius design and a retractable undercarriage allow the machine to access and work efficiently in tight, confined areas.
- Stick Steer Control: This industry-first option allows the operator to switch from traditional travel levers and pedals to left-hand joystick control with the push of a button, reducing effort and improving control.
- Operator Comfort: Operators can choose between a canopy or a sealed and pressurized cab, with optional air conditioning and a suspension seat, to help reduce fatigue during long workdays.
- Ease of Maintenance: The machine features ground-level daily service checkpoints accessible via side doors, and the entire cab can tilt up to provide full access to major hydraulic components and the engine compartment for easier maintenance.
- Performance and Efficiency: It features a strong digging force and load-sensing hydraulics that enhance productivity. It also includes features like auto engine idle and auto engine shutdown to help lower operating costs and fuel consumption.

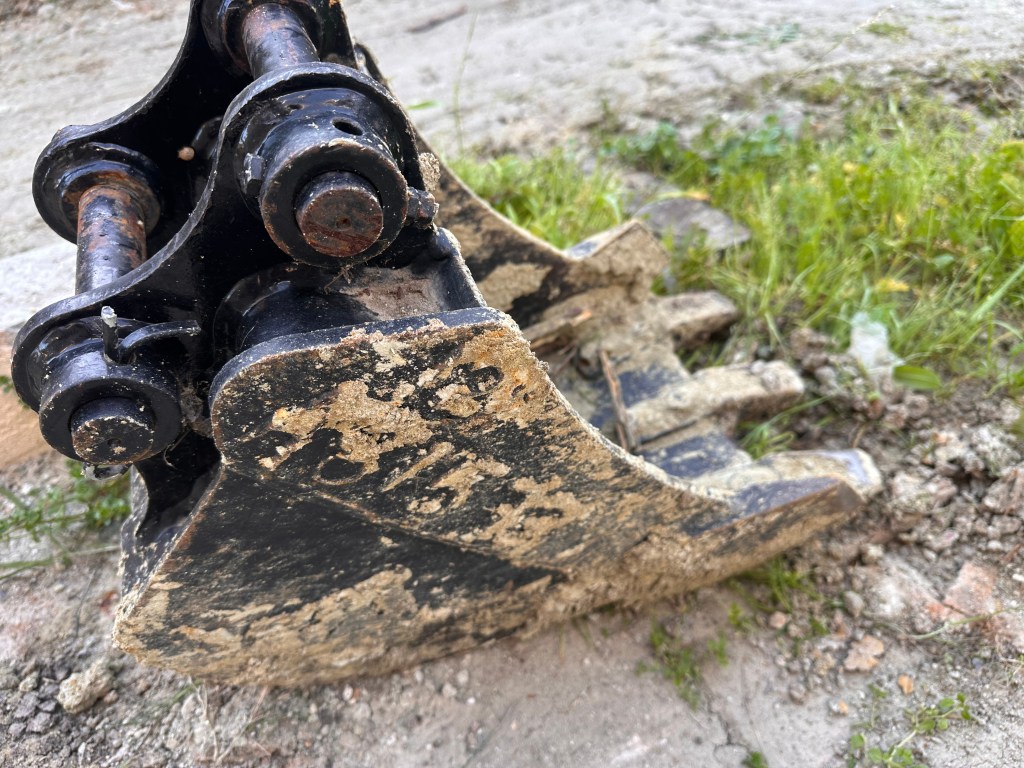

- Versatility: A standard dozer blade with a float function allows for easy cleanup and grading. The machine is also compatible with a variety of attachments, including buckets, augers, and hammers, to tackle diverse job site applications.
Specifications (with Standard Stick)
According to Caterpillar’s official specifications, the
302 CR offers robust performance in a compact package:
| Specification | Details |
|---|---|
| Operating Weight | 4,987 lb (2,262 kg) |
| Engine Net Power | 21 hp (15.7 kW) |
| Dig Depth | 93.3 in (2,370 mm) |
| Max Reach (Ground Level) | 159.1 in (4,040 mm) |
| Max Dump Clearance | 100.8 in (2,560 mm) |
| Track Width (Expanded) | 55.12 in (1,400 mm) |
| Max Travel Speed (High) | 2.7 mph (4.4 km/h) |
Note: Dimensions and weights can vary based on configuration (e.g., cab/canopy, stick length, steel/rubber tracks, and added counterweights).
